Branch Pipe Layouts

Branch Pipe Layouts: Master Complex Fabrication Patterns in Seconds

Staring at mismatched pipe segments in our workshop last monsoon season, frustration mounted as manual calculations failed yet again. That's when I discovered Branch Pipe Layouts - and it transformed my fabrication workflow overnight. This engineering marvel solves the exact pain points we face daily: generating precise flat patterns for intricate piping intersections without tedious math. Whether you're a seasoned pipe fitter battling tight deadlines or a design engineer optimizing pressure vessels, this app becomes your indispensable companion.

Precision Shell Development became my starting point after installation. Inputting diameter and height parameters before dawn coffee, I watched the app instantly generate plate dimensions and segmentation options. The relief was physical - shoulder tension easing as manual trigonometry vanished. Customizable part divisions (12 to 96 segments) proved invaluable when fabricating reactor vessels last quarter, allowing perfect material optimization where previous methods wasted 15% steel.

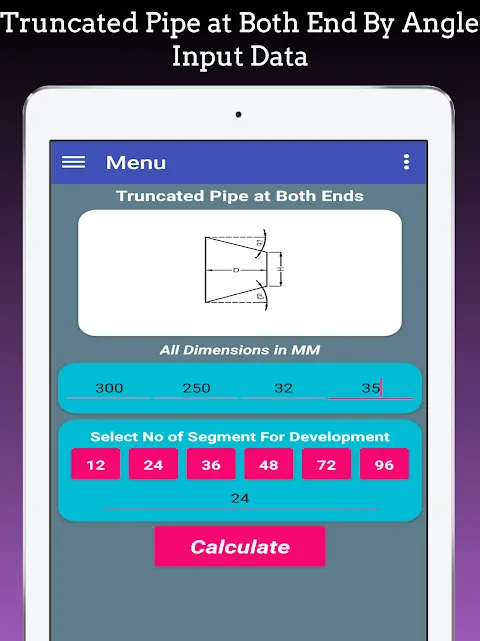

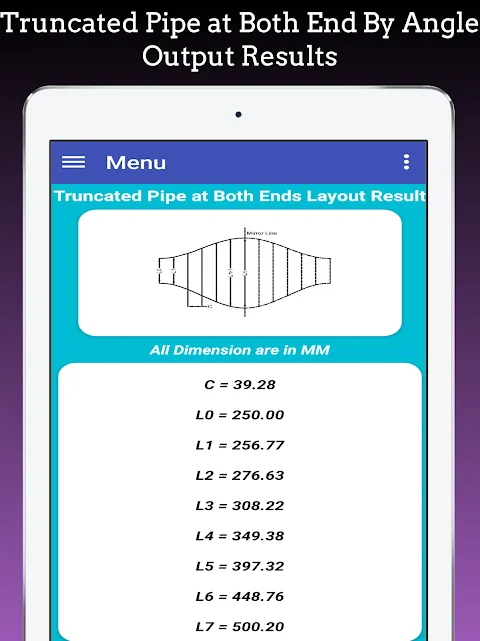

When emergency repairs required Angled Truncation on corroded pipelines, the app's dual-angle calculation stunned me. Entering center height with top/bottom angles at the jobsite, the generated pattern hugged complex contours flawlessly. That visceral moment when the plasma-cut curve slid into place? Pure validation. The radius truncation feature similarly saved a water tower project - inputting dome curvature values yielded patterns that fit like engineered gloves.

90° Equal Diameter Intersections tested the app during refinery shutdowns. With identical branch/main pipes, I input center distance values while rain lashed our site trailer. Watching symmetrical miters materialize on-screen felt like witnessing fabrication sorcery. Later that night, fitters installed the tee connection without single re-cut - unheard of in my 20-year career. The physical perfection translated to emotional confidence during pressure testing.

True revelation came with Offset Unequal Intersections. Handling a misaligned compressor hookup, I entered differing diameters with 38mm offset. The app compensated for asymmetry in ways manual methods couldn't fathom. When the branched assembly slid into cramped space between structural beams, the shop foreman's nod was worth a thousand words. This feature alone justifies the download for anyone doing retrofit installations.

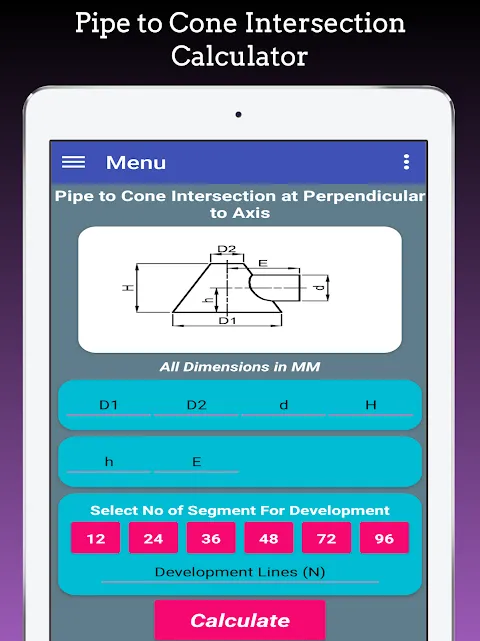

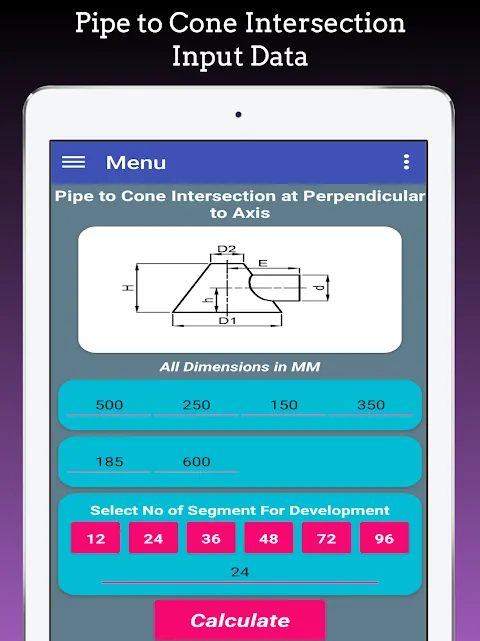

Cone-Pipe Junctions demonstrated specialized prowess during heat exchanger fabrication. Inputting conical dimensions with nozzle height, the 90° intersection solution appeared before my coffee cooled. Months later, parallel-axis calculations for inclined ducting proved equally magical. That tactile satisfaction of seeing laser-cut patterns wrap perfectly around conical surfaces? It never gets old.

Picture this: 5:30 AM at the fabrication yard, frost crystallizing on steel beams. I'm crouched beside malfunctioning distillation piping, deadline looming. Phone out, I input main diameter (324mm), branch (219mm), and 67mm offset. Within breaths, the app delivers segmented patterns. As dawn breaks, the acetylene torch ignites - each precisely cut curve meeting its counterpart with metallic kisses. By shift change, what was crisis becomes triumph.

The brilliance? Launch-to-results speed outperforms any desktop software I've used. Yet during night shifts, I crave adjustable rendering contrast - harsh screen glare strains eyes. Material thickness presets would elevate it further. Minor wishes aside, this app shaves hours off fabrication timelines. For pipefitters sweating over fit-ups or engineers designing complex process skids, it's non-negotiable. Keep it on your primary work device - when unconventional intersections threaten deadlines, this becomes your secret weapon.
