Series/Parallel Resistors

Resistor Combo Wizard: Build Circuits Faster with Series Parallel Calculations

Staring at a breadboard with mismatched resistors felt like hitting a brick wall. My prototype needed 470 ohms, but my bins held nothing close. That sinking frustration vanished when Resistor Combo Wizard transformed guesswork into precision. As an electronics hobbyist juggling projects after work, this app became my circuit-solving compass. It effortlessly finds resistor pairs for exact values through series or parallel combinations, turning inventory limitations into opportunities. For tinkerers and engineers alike, it’s the silent partner that rescues stalled designs.

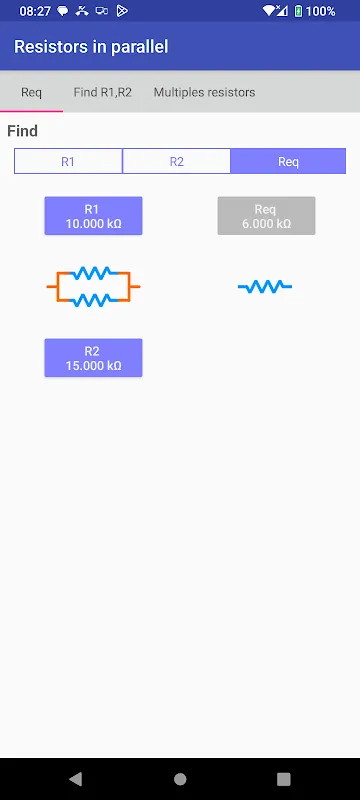

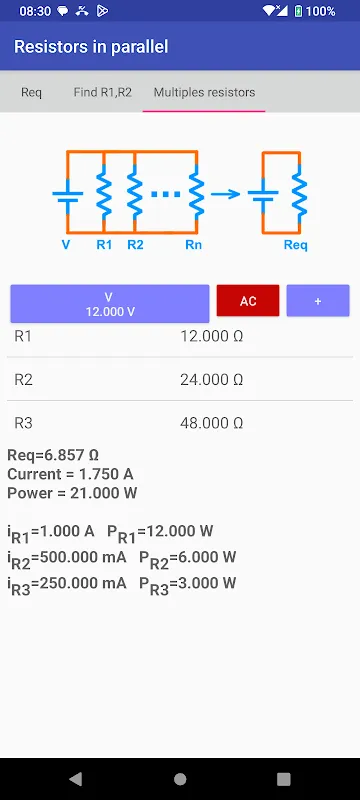

Equivalent Resistance Calculator When I first connected two random resistors in parallel, manual math slowed me down. This tool instantly displayed the result before my finger left the screen. That immediate clarity—seeing 220Ω and 330Ω merge into 132Ω—felt like lifting fog from schematics. Now I verify connections mid-build without pausing, the calculation speed mirroring my racing thoughts during debugging sessions.

Desired Resistance Finder Needing 3.3kΩ with only E12 series resistors felt impossible until the app generated 37 combinations. Scrolling through options, I discovered 1.8kΩ and 4.7kΩ in parallel could work. That moment sparked pure relief—like finding spare parts in a cluttered garage. It handles obscure values too; last week it suggested a 68kΩ+22kΩ series pair for 90kΩ when prototyping a vintage amp repair.

CSV Export Function During a weekend workshop, I compiled twenty combinations for a group project. Exporting to CSV felt like handing colleagues a pre-sorted toolbox. Opening the file in Excel, every resistance and pairing aligned perfectly in columns. Now I archive solutions for recurring projects, the spreadsheet becoming a searchable knowledge base for future builds.

Pro Version Liberation Ads initially distracted me during midnight calculations. Upgrading to Pro removed them entirely—no more accidental clicks while adjusting values with solder-stained fingers. The unlimited searches proved essential when designing a modular synth; I tested 300+ combinations without hitting restrictive paywalls. That freedom mirrors an unlocked components cabinet.

At dawn yesterday, moonlight illuminated my workbench as I entered 12kΩ into the app. Within seconds, it suggested parallel 15kΩ and 47kΩ resistors. I connected them, multimeter confirming perfection—a quiet triumph before coffee. During thunderstorms, I export combinations while listening to rain patter against the workshop roof, the process as rhythmic as soldering.

The lightning-fast results outpace my oscilloscope’s boot time, eliminating prototyping delays. But I wish for custom tolerance settings; once 5% resistors caused slight drift in a sensitive circuit. Still, for under ten dollars, Pro version transforms frustration into flow. Essential for anyone salvaging components or designing on tight budgets.
